Normal Low-Voltage Network Cabinet Architecture Diagram

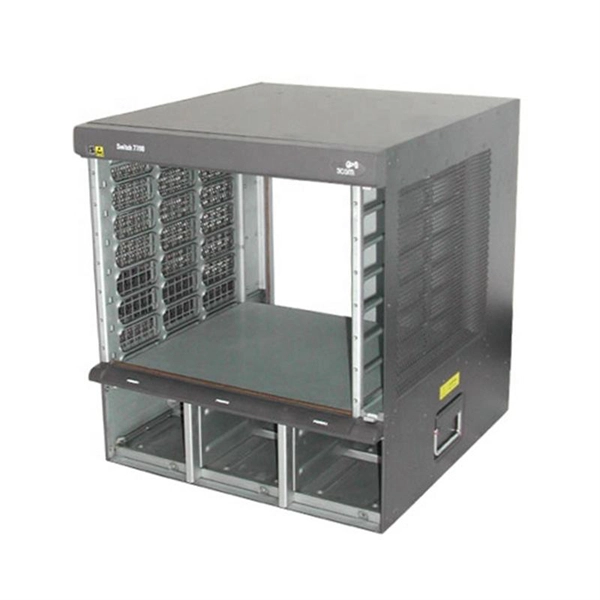

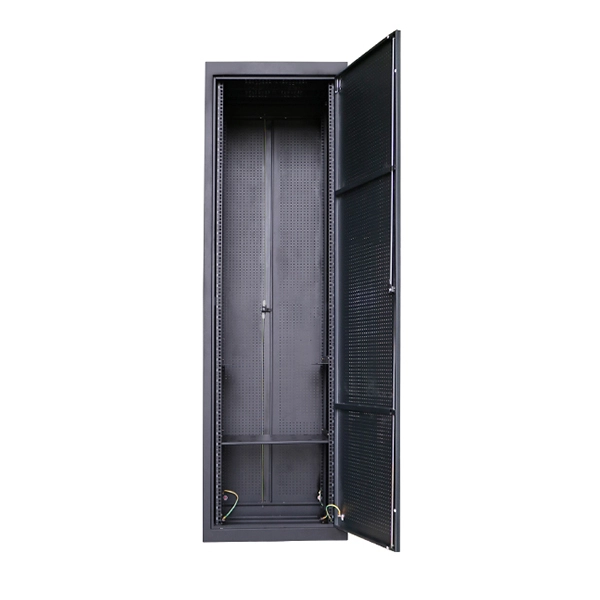

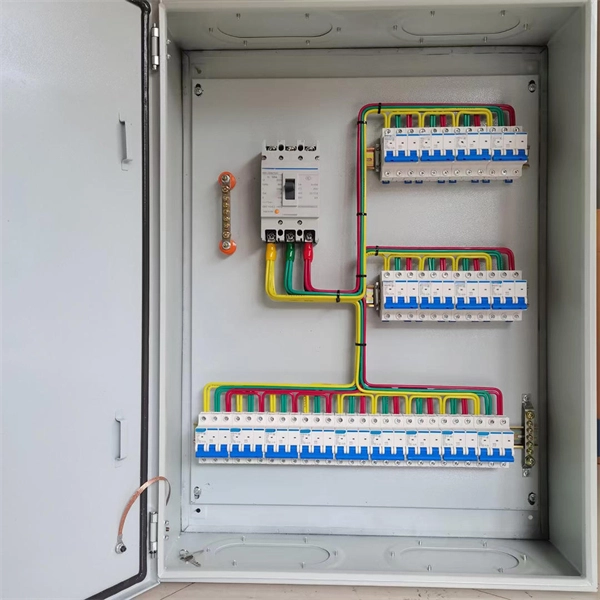

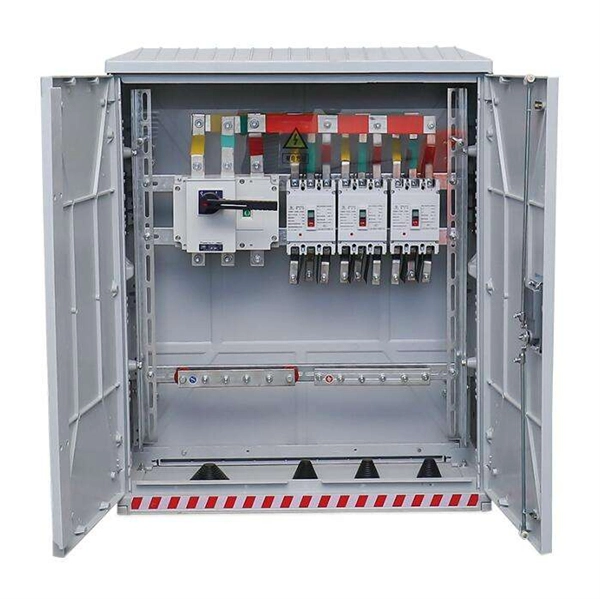

Low-voltage network cabinets are modular, compartmentalized enclosures designed to safely distribute power and network connections, following standards like UL 1558, IEEE C37.20.1, and IEC 61439.Structural LayoutLow-voltage switchgear cabinets typically consist of vertical sections or cubicles, each housing multiple compartments for breakers, instruments, and busbars. In US-standard switchgear, cabinets are divided vertically into four breaker compartments, with horizontal busbars positioned at the rear and connected to vertical busbars that distribute current to each compartment . Modular systems like Siemens SIVACON 8MF1 allow custom configurations for industrial applications, supporting flexible assembly, cooling, and accessory integration . ABB MNS-SG assemblies use a C-channel rigid platform to support draw-out breakers and outgoing cable connections .Busbar and Breaker ConfigurationHorizontal busbars: Typically arranged in three groups (upper, middle, lower) to carry high current loads.Vertical busbars: Connect horizontal busbars to individual breaker compartments.Circuit breakers: US systems use power frame breakers rather than molded-case breakers, with draw-out types available in 800–5000 A frame sizes .Outgoing connections: Routed through the space between vertical and horizontal busbars, exiting at the rear via copper bar terminations, cable lugs, or terminals . IEC-based systems follow similar principles but may differ in depth, compartment arrangement, and breaker types, emphasizing modularity and compliance with IEC 61439 standards .Cooling and Safety ConsiderationsHeat dissipation: Tools like SIMARIS therm allow precise calculation of heat loads and selection of cooling devices or anti-condensation heaters .Low-voltage IDF racks: Designed for network infrastructure, these enclosures optimize airflow, reduce heat output, and support low-voltage cabling for communication, security, and automation systems .Safety: Low-voltage cabinets reduce electrical hazards, with proper compartmentalization and adherence to standards ensuring fault tolerance and long-term reliability .Modularity and ScalabilityModular cubicles allow easy expansion and reconfiguration without major overhauls.IDF racks and switchgear systems support future-ready architecture, enabling centralized control, high-density deployment, and structured cabling compliance .Limit plates, mounting plates, and accessory options provide flexibility for sector-specific adaptations .Standards ComplianceUS Standards: UL 1558, IEEE C37.20.1, ANSI C37.50, CSA C22.2 No. 31 .International Standards: IEC 61439, IEC 60947 series, DIN/VDE, BS standards .Compliance ensures mechanical robustness, short-circuit withstand capability, and safe operation under rated currents and fault conditions.SummaryA standard low-voltage network cabinet integrates modular design, compartmentalized breaker sections, horizontal and vertical busbars, and proper cooling, all while adhering to relevant safety and performance standards. Whether for power distribution or network infrastructure, these cabinets provide scalable, safe, and efficient solutions for industrial, commercial, and data center environments .
