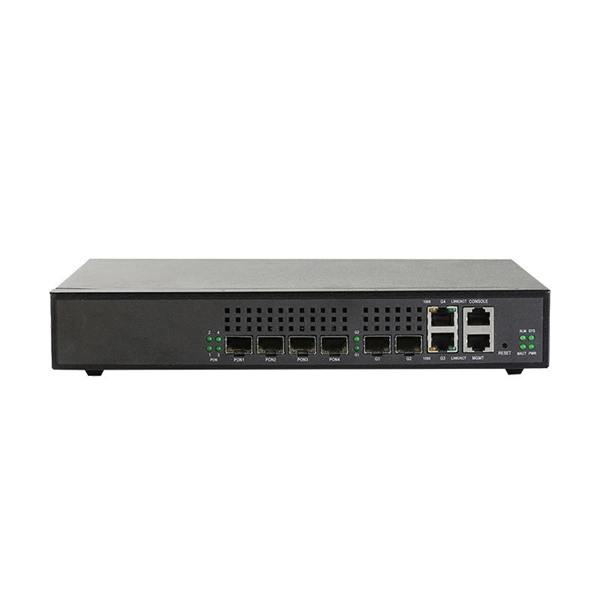

Industrial Switch Hardware Port Configuration

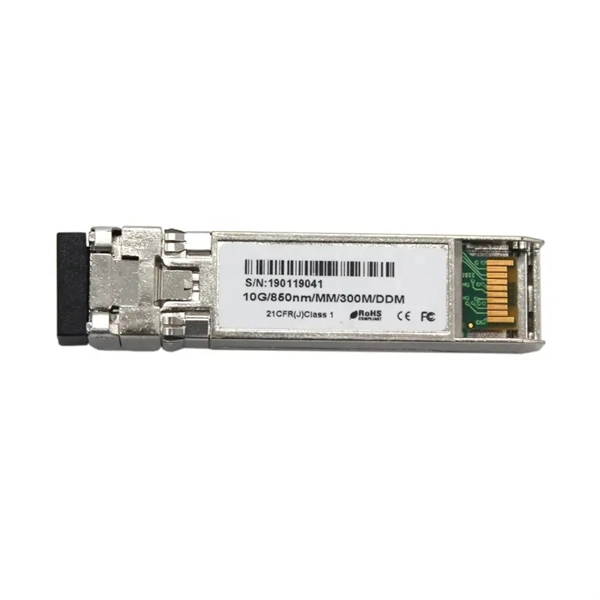

Proper industrial switch port configuration ensures reliable connectivity, optimized traffic flow, and secure network operation.Hardware and Initial SetupBefore configuring ports, ensure the switch is properly powered and grounded, and that your computer is connected to the management or console port using the appropriate cable ( ). Use the switch's default IP address, username, and password to access the management interface via a web browser or terminal software. Verify system information such as model, firmware version, and serial number before making changes ( ).Port Configuration Essentials1. Port Hardware Specifications:Check speed ratings (10/100/1000 Mbps), supported media types (RJ45, SFP, SFP+), and PoE capabilities.Ensure the connected device supports the same speed and duplex mode to avoid link failures ( ). 2. VLAN Assignment:Create VLANs according to business requirements and assign ports as access or trunk.Verify native VLAN consistency and ensure trunk ports allow the expected VLANs to prevent traffic disruption ( ). 3. Link Aggregation (LAG):Configure LACP consistently on all member ports.Ensure identical speed, duplex, VLAN, and trunking settings across aggregated ports to form a stable bundle ( ). 4. PoE Configuration:Confirm per-port power limits and the switch's global power budget.Monitor PoE allocation to prevent overloads and ensure connected devices receive sufficient power ( ). 5. Security and Access Control:Enable port security, including MAC address binding and port speed limiting.Configure ACLs, SSH, and HTTPS to protect management channels ( ).Advanced SettingsSet IP addresses, subnet masks, and routing protocols (static or dynamic like OSPF/EIGRP) for inter-VLAN communication ( ).Configure QoS policies, traffic shaping, and multicast/groupcast for high-bandwidth applications.Enable monitoring and logging to track link status, traffic, and faults ( ).Best PracticesUse auto-negotiation for speed and duplex whenever possible.Document VLAN topology, port assignments, and LAG configurations.Test connectivity, routing, and security policies after configuration to ensure proper operation ( ). By following these steps, industrial switch ports can be configured for reliable, secure, and high-performance network operation, minimizing downtime and troubleshooting issues.
