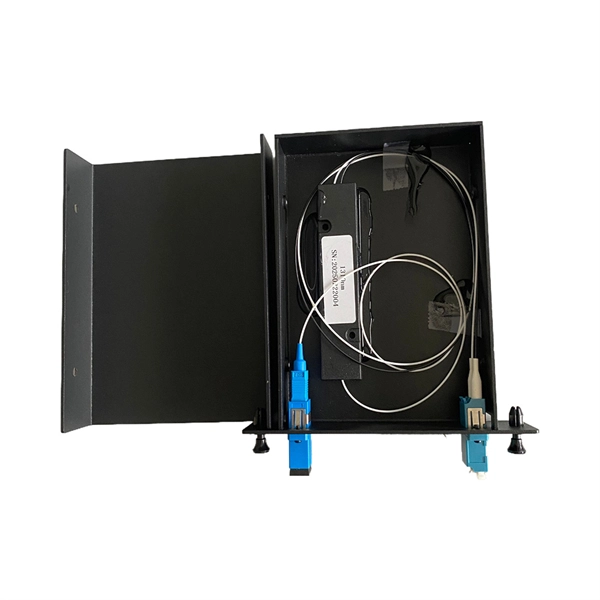

Working principle of rack-mounted optocouplers

Rack-mounted optocouplers transfer electrical signals between isolated circuits using light, providing galvanic isolation while allowing both AC and DC signal transmission.Basic OperationAn optocoupler, also called an optoisolator, consists of a light-emitting diode (LED) and a photodetector such as a phototransistor, photodiode, or photothyristor, housed in a single package. When an input voltage is applied to the LED, it emits infrared light, which is detected by the photodetector. This light triggers the photodetector to conduct, producing a corresponding output signal while maintaining electrical isolation between input and output circuits .Phototransistor-Based OptocouplersIn phototransistor optocouplers, the phototransistor acts as a switch or amplifier. The LED light acts as the base current, causing the transistor to conduct between collector and emitter. The output current is proportional to the LED input current, defined by the current transfer ratio (CTR). The phototransistor can switch signals on and off, making it suitable for digital logic isolation or low-power AC/DC signal transfer .Rack-Mounted ConfigurationRack-mounted optocouplers are typically installed in modular systems where multiple optocouplers are arranged in a standardized rack or DIN rail format. This allows easy integration into industrial control systems, communication interfaces, or power supply modules. Each module maintains galvanic isolation between high-voltage and low-voltage sections, preventing ground loops and protecting sensitive electronics .Key ParametersIsolation Voltage (Viso): Maximum voltage the optocoupler can withstand between input and output without breakdown, typically 500 V to 5 kV RMS .Forward LED Current (If): Determines the light intensity and output conduction, usually 10–20 mA for standard devices .Output Voltage (Vce) and Current (Ic): Maximum voltage and current the phototransistor can handle, often 30–70 V and 40–100 mA .Rise/Fall Time: Defines switching speed, typically 2–5 µs, affecting bandwidth and signal fidelity .Advantages in Rack SystemsElectrical Isolation: Protects low-voltage control circuits from high-voltage spikes.Noise Immunity: Blocks electrical noise and prevents ground loops.Compact Modular Design: Facilitates easy replacement and maintenance in rack-mounted systems.Versatility: Can handle both AC and DC signals, suitable for digital and analog applications . In summary, rack-mounted optocouplers operate by converting electrical signals into light and back, ensuring safe and reliable signal transfer between isolated circuits, with modular packaging optimized for industrial and communication rack systems.
